SERVICEABLE POE UVC LED MODULE · 12 GPM
AGLED-40012 12 GPM Whole-House UVC LED Water Sterilizer
A replaceable high-flow module with planned maintenance and visual driver monitoring.
AGLED-40012 combines a nominal 12 GPM flow basis, a serviceable UVC LED assembly and a 5,000-hour driver for whole-house and light-commercial POE projects.
12 GPM Maximum flow · 45 LPM
50 W Rated input power
2,000 mW UVC radiant output
40 mJ/cm² UV dose at 12 GPM
PRODUCT ROLE
High-flow POE treatment with a serviceable module design.
Its replaceable UVC LED assembly allows trained service teams to replace the light-source module while retaining the reactor body, supporting straightforward planned maintenance.
APPLICATION FIT
Combine high-flow treatment with serviceable maintenance.
- Flow matching: our application team matches the model to the highest realistic draw and target operating condition
- Water review: we review UVT, turbidity, hardness, iron and the appropriate pretreatment
- Mechanical fit: we align pressure, connection, flow direction, mounting and service clearance
- Electrical fit: we select the suitable supply, appliance controls and flow-activation configuration
- Project documents: we prepare the relevant drawing, model report and market documents for review
Light commercial
Pretreated drinking-water systems requiring planned maintenance and status monitoring.
Serviceable systems
Projects where the UVC LED assembly is planned as a replaceable service item.
OEM POE equipment
Integration into complete systems with G1 connections, driver placement and safe service clearance.
ENGINEERING DATA
Specifications for model selection.
The current drawing, datasheet and manual are available for project review. Our team will align them with the quoted configuration.
01
DIMENSION DRAWING AGLED-40012 mechanical drawing
Hydraulic & mechanical
Fit the model to the water path.
- Maximum flow rate
- 12 GPM · 45 LPM
- Startup flow
- >3 L/min
- Maximum inlet pressure
- 0.8 MPa
- Inlet / outlet
- G1 female; compatible with 1-inch NPT1 / PT1 / G1 / R1 male thread
- Catalog envelope
- 154 × 289 mm
- Net / gross weight
- 3.1 kg / 4.9 kg
- Service design
- Replaceable UVC LED assembly
Electrical & optical
Use the correct powered version.
- Input voltage
- 100–240 V AC
- Output current
- 900 mA
- Rated power
- 50 W
- UVC radiant output
- 2,000 mW
- UVC wavelength
- 270–280 nm
- UV dose
- 40 mJ/cm² at 12 GPM
- L70 service basis
- 5,000 hours
- Protection class
- IP67
04
ELECTRICAL & OPTICAL DATA Product parameters
| No. | Parameter | Symbol | Value | Unit |
|---|---|---|---|---|
| 01 | Input voltage | VIN | 100–240 | V AC |
| 02 | Output current | IOUT | 900 | mA |
| 03 | Rated power | W | 50 | W |
| 04 | UVC radiant output | Φe | 2,000 | mW |
| 05 | UVC wavelength | WLP | 270–280 | nm |
| 06 | UV dose at 12 GPM | D | 40 | mJ/cm² |
| 07 | Lifetime test | L70 | 5,000 | h |
Serviceable maintenance design
The 5,000-hour smart driver provides runtime and fault information for planned service, while the replaceable UVC LED assembly lets trained personnel retain the reactor body.
OEM INTEGRATION REVIEW
Plan the reactor, driver and replacement procedure together.
The serviceable layout supports straightforward planned maintenance with accessible driver visibility, isolation points and module replacement space.
- 01 Define water conditions
Peak flow, UVT, turbidity, temperature and upstream treatment.
- 02 Match mechanical fit
Pressure, connection size, flow direction, mounting and service clearance.
- 03 Select electrical version
Supply voltage, host-appliance logic, flow activation and safe cable routing.
- 04 Assemble project documents
Match the exact model report and compliance documents to the target project.

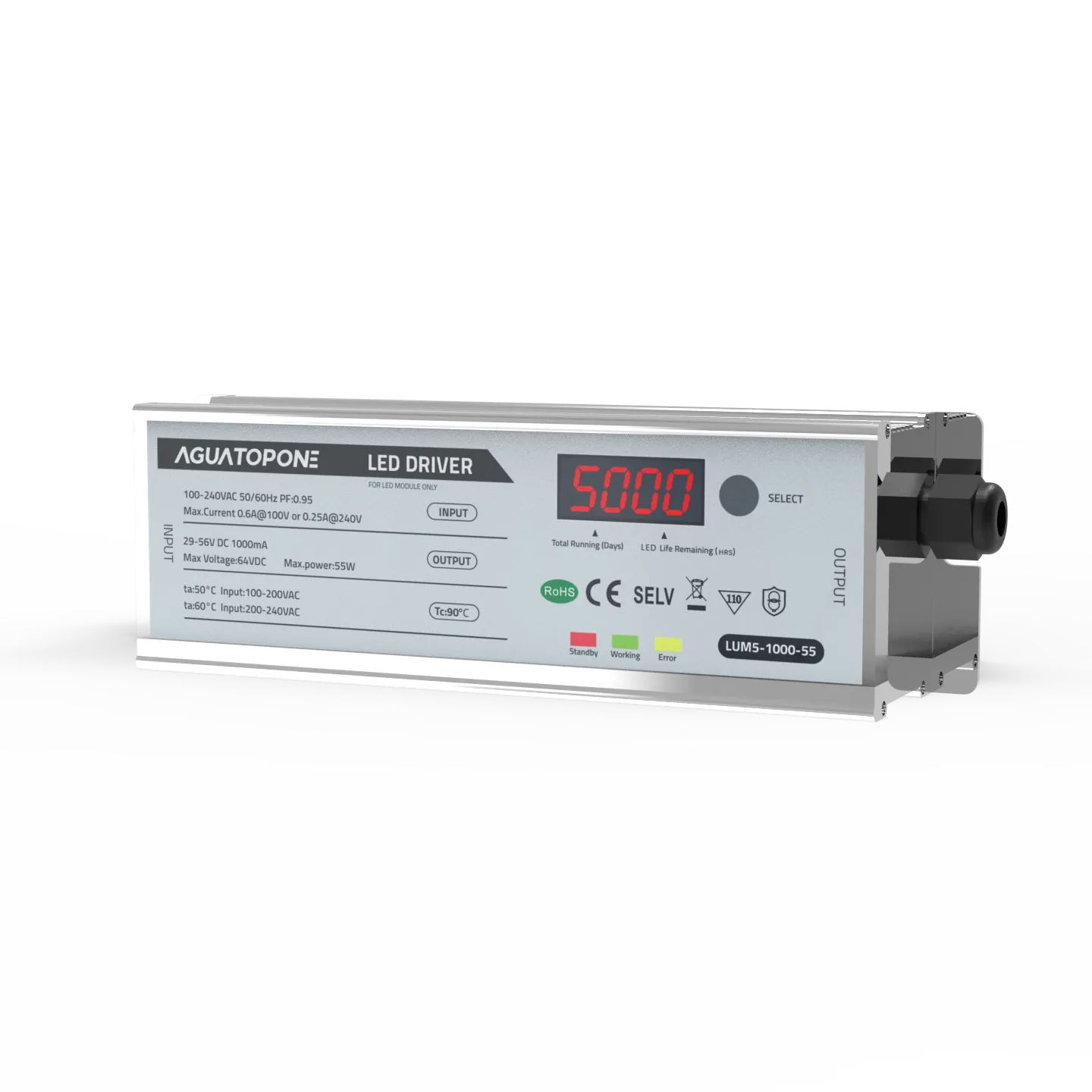

SMART DRIVER
5,000-hour countdown and visual status monitoring.
The driver provides operational-hour tracking, an indicator ring and end-of-life or fault alerts for maintenance planning.

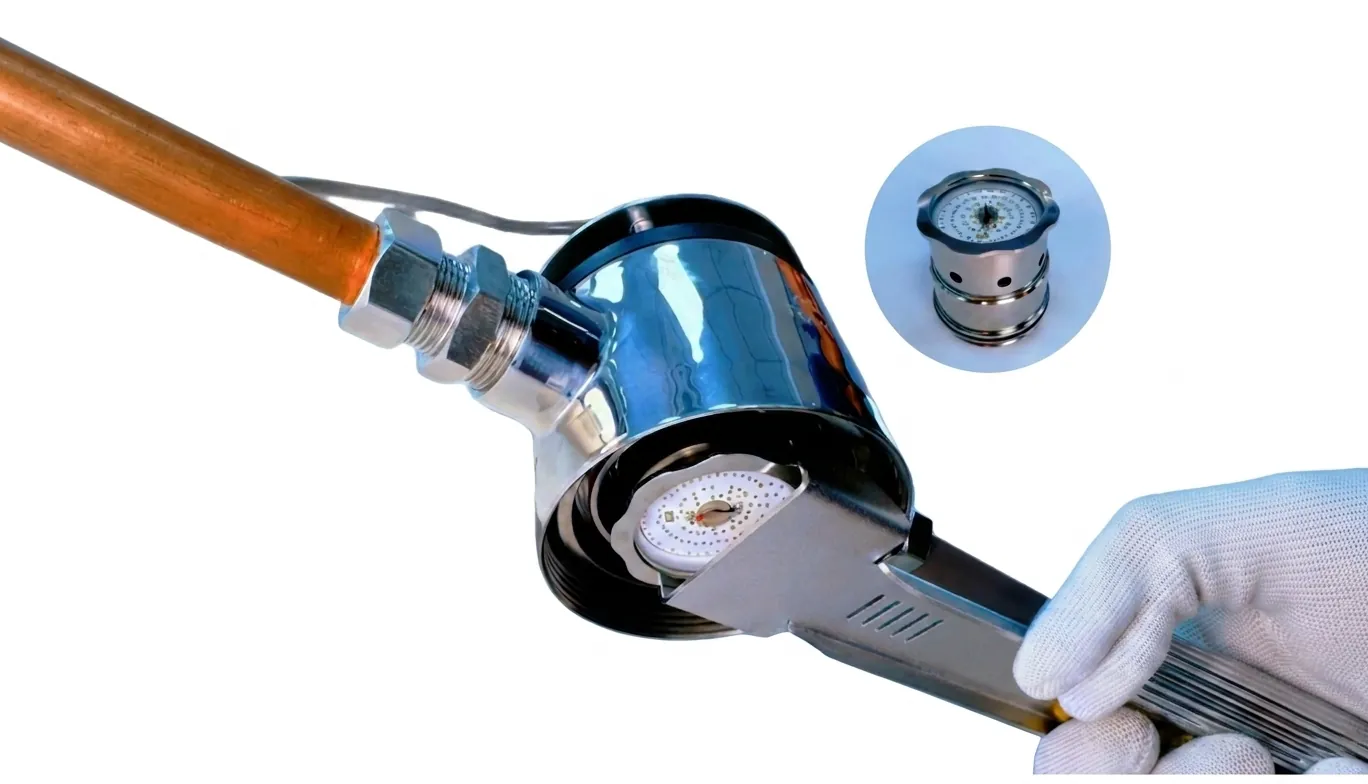

SERVICEABLE MODULE
Replace the UVC LED assembly without replacing the reactor body.
The replaceable assembly supports planned maintenance by trained service personnel while retaining the complete reactor body.
MODEL-SPECIFIC EVIDENCE
99.999% E. coli reduction stated for the available SGS report under its model-specific flow and water conditions.
The SGS report and applicable product documents present the flow and water conditions behind the result; our team aligns them with the installation.
Open model test reportModel-specific results with clear test conditions.
The report identifies the model, organism, flow and water conditions behind the performance result.
Documents organized by project purpose.
Performance reports and compliance documents are listed independently for straightforward review.
Factory Test Items and Acceptance Criteria.
The table below lists the factory test items and acceptance criteria for the specific model.
The table below lists the factory test items and acceptance criteria for AGLED-40012.
No. Test item Test method and criteria
01 Tensile test
Terminal-to-wire tensile force ≥30 N for 1 minute without loosening; welded wire-to-module tensile force ≥35 N without defects within 10 seconds.
02 Dielectric withstand voltage
1500 V / 50 Hz AC is applied between the live part and housing for 1 minute; the test sample remains undamaged.
03 Sealing test
Static pressure is held at 0.4 MPa for 5 minutes without air leakage.
04 Pressure resistance
Static water pressure is increased to 0.6 MPa within 5 minutes at a rate of ≤0.4 MPa/s and held for 15 minutes to check module water tightness.
05 Burst test
Water pressure is raised to 0.8 MPa within 70 seconds, held for 5 seconds and released; appearance, mechanical and electrical performance remain normal.
06 Cyclic pressure
10,000 repeated cycles at 0–0.45 MPa with a 2-second pressure rise are used to observe module water tightness.
07 Freezing test
The water-filled, blocked module is placed at −15°C for 48 hours and then thawed naturally; sealing performance remains normal.
08 Low-temperature storage
The sample is stored at −15°C ±2°C for 72 hours and recovered at room temperature for at least 1 hour; appearance remains normal, and UVC intensity and module working current meet the drawing requirements.
09 High-temperature storage
The sample is stored at 50°C ±2°C for 72 hours and recovered at room temperature for at least 1 hour; appearance remains normal, and UVC intensity and module working current meet the drawing requirements.
10 Thermal shock
The sample cycles 10 times between −15°C ±2°C and 85°C ±2°C with 30-minute holds and a 3-minute conversion time, then recovers at room temperature for at least 1 hour; appearance, UVC intensity and working current meet the drawing requirements.
11 Constant temperature and humidity
The module is placed in a 40°C, 85% RH test chamber for 168 hours without damage, and all functions remain available.
12 Vibration test
The packaged product is tested at 4 Hz (240 CPM) for 60 minutes to ISTA-2001; packaging shows no obvious damage or deformation, the product surface and parts show no mechanical damage, and product function remains normal.
13 Drop test
The inner and outer packaging boxes are each allowed to fall freely from 1 metre; packaging shows no obvious damage or deformation, internal fixtures show no obvious displacement, the product and parts show no mechanical damage, and electrical safety, performance and appearance meet the applicable requirements.
14 Hazardous substances
Module hazardous-substance content is checked against the limit requirements of the EU RoHS directive.
DOCUMENT CENTER
Review the technical package for your project.
Drawings, performance reports, installation documents and market files are organized by purpose for easier project review.
PRODUCT AGLED-40012 High-Flow Brochure Model overview, high-flow positioning and serviceable design. MANUAL AGLED-40012 Owner's Manual Operation, safety, driver and service information. SGS AGLED-40012 SGS Test Report Model performance under the report conditions. CE UVC LED Series CE Compliance Certificate Series-level CE compliance document. CATALOG UVC LED Product Catalog 2026 Series comparison and model context.
APPLICATION REVIEW
Find the right AGLED-40012 configuration for your project.
Share your peak flow, water quality and integration requirements. Our application team will match the model, configuration and supporting documents to your project.
