PP sediment filtration
Reduces silt, dirt, rust and suspended particles before downstream stages.
WHOLE-HOUSE FILTRATION + UVC DISINFECTION
VPS Whole House UV Water Filter Systems
A multi-stage UV water filtration platform for point-of-entry projects.
VPS combines PP sediment and carbon filtration with an AGLED-40012 UVC LED disinfection stage. Compare 3- or 4-stage treatment trains, 10- or 20-inch filter housings, 30 or 45 L/min rated flows at 30 mJ/cm², and open-frame or covered variants.
4 + 4COpen / covered variants
3 or 4Treatment stages
30 / 45 L/minAt 30 mJ/cm²
1 inchInlet / outlet size
TREATMENT ROLES
Filtration and UVC solve different water-treatment tasks.
VPS brings complementary treatment stages into one serviceable platform. Our application team matches the installed cartridge media and UVC configuration to the project flow, UVT, water quality and operating conditions.

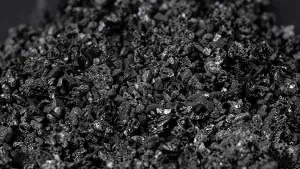

Carbon filtration
Supports reduction of selected chlorine, taste and odour concerns according to cartridge specification.
UVC LED disinfection
Provides microbial treatment through the AGLED-40012 reactor under validated operating conditions.
System service plan
Supports planned cartridge replacement, reactor cleaning, module service and pressure checks through an accessible maintenance layout.

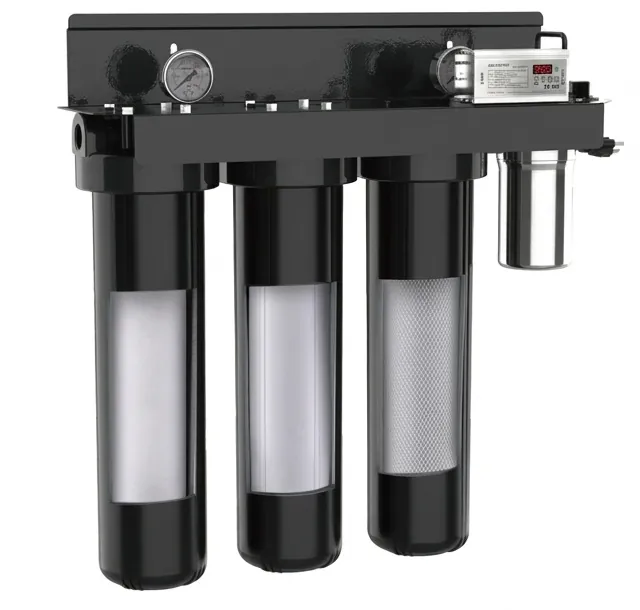

INSIDE THE VPS SYSTEM
See how each component supports the complete treatment path.
Explore the sediment, carbon, pressure-monitoring and UVC LED components that work together from inlet to treated-water outlet.
HOW THE TRAIN WORKS
Choose the stage count from the treatment objective.
- Sediment first: protect carbon and UVC stages from particulate loading.

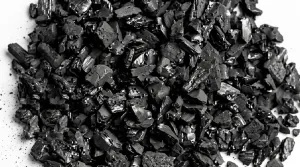

- Add GAC when required: VPS-104 and VPS-204 include the additional granular-carbon stage.
- Use CTO as the polishing carbon stage: select the cartridge for the target-water composition and treatment goals.
- Disinfect after filtration: the UVC LED stage treats microorganisms but provides no residual disinfection in downstream plumbing.
MODEL SELECTION
Choose the stage count, filter size and enclosure format.
Every layout is available as an open-frame base model or as a protective-cover model identified by the C suffix. Compare the options by peak flow, treatment stages and available service space.

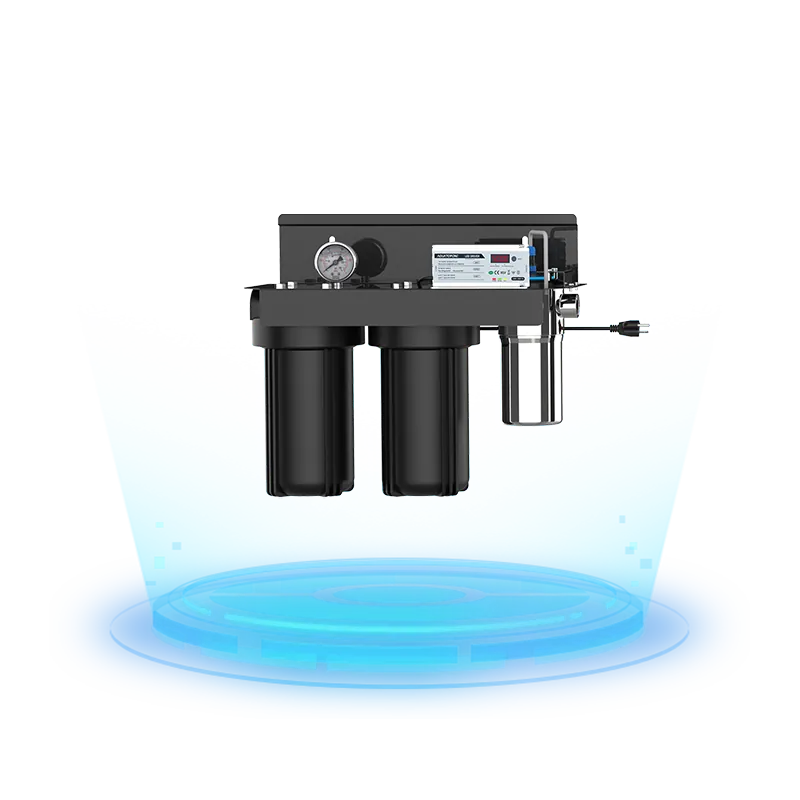

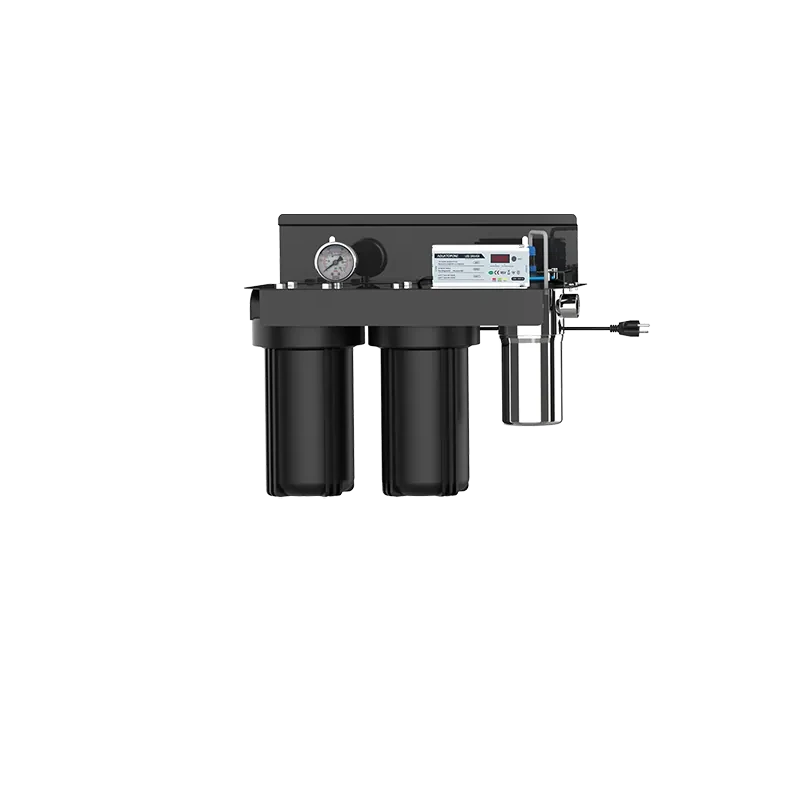

Base model · open-frame 3-stage · 10-inch
Review this VPS configuration VPS-103 / VPS-103C
VPS-103 Open-frame VPS-103C Protective cover
Compact PP sediment + CTO carbon + UVC LED treatment train for whole-house point-of-entry projects.
- 30 mJ/cm²
- 30 L/min (8 GPM)
- Filter train
- 10 × 4.5 in · PP + CTO
- Open-frame size
- 540 × 215 × 570 mm
- UVC stage
- AGLED-40012 · 50 W

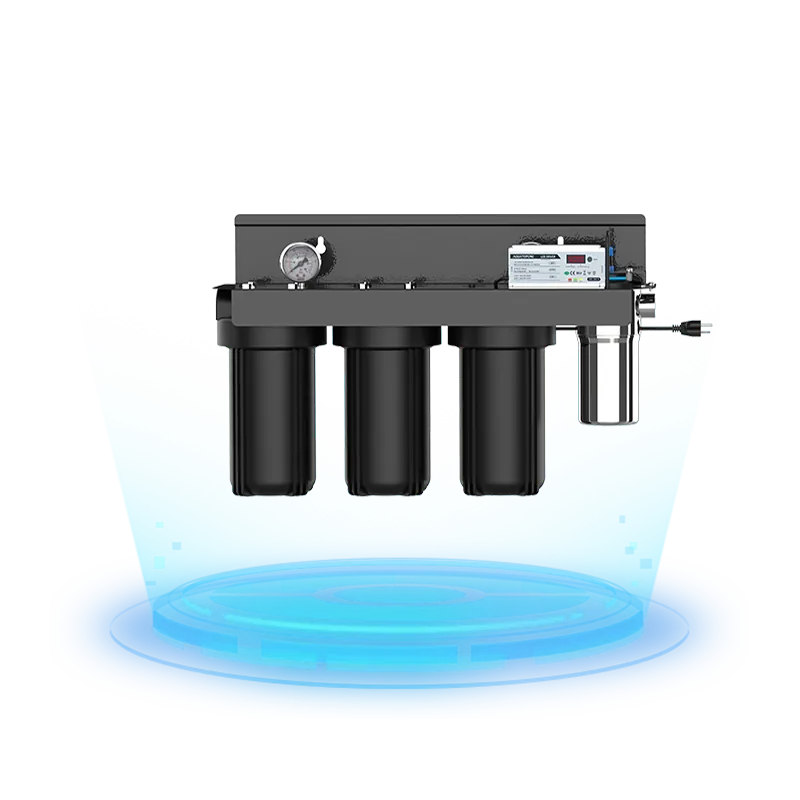

Base model · open-frame 4-stage · 10-inch
Review this VPS configuration VPS-104 / VPS-104C
VPS-104 Open-frame VPS-104C Protective cover
Compact PP sediment + GAC + CTO carbon + UVC LED treatment train for projects that require an additional carbon stage.
- 30 mJ/cm²
- 30 L/min (8 GPM)
- Filter train
- 10 × 4.5 in · PP + GAC + CTO
- Open-frame size
- 730 × 215 × 570 mm
- UVC stage
- AGLED-40012 · 50 W

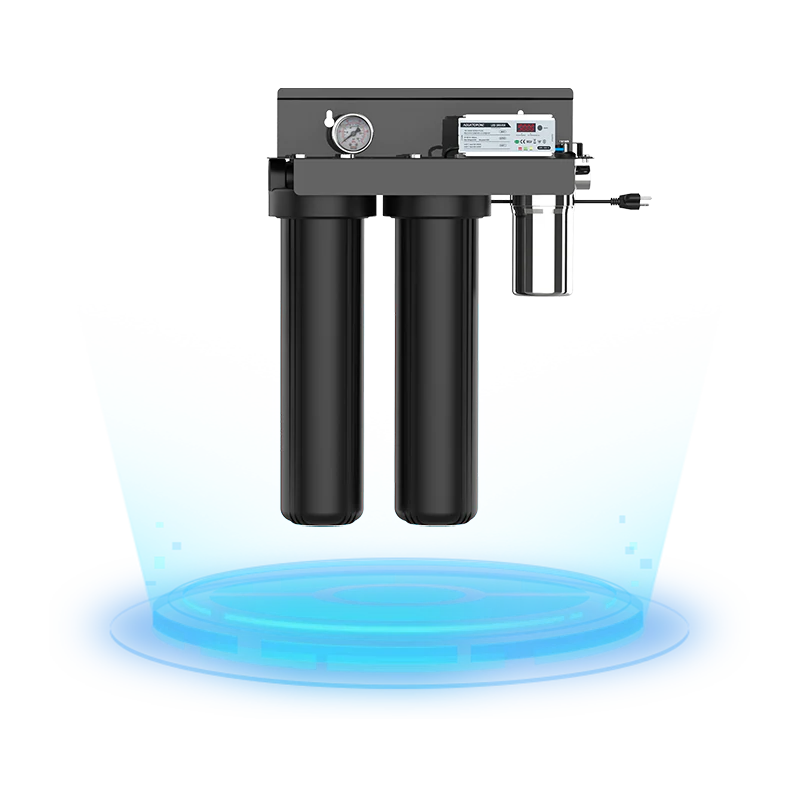

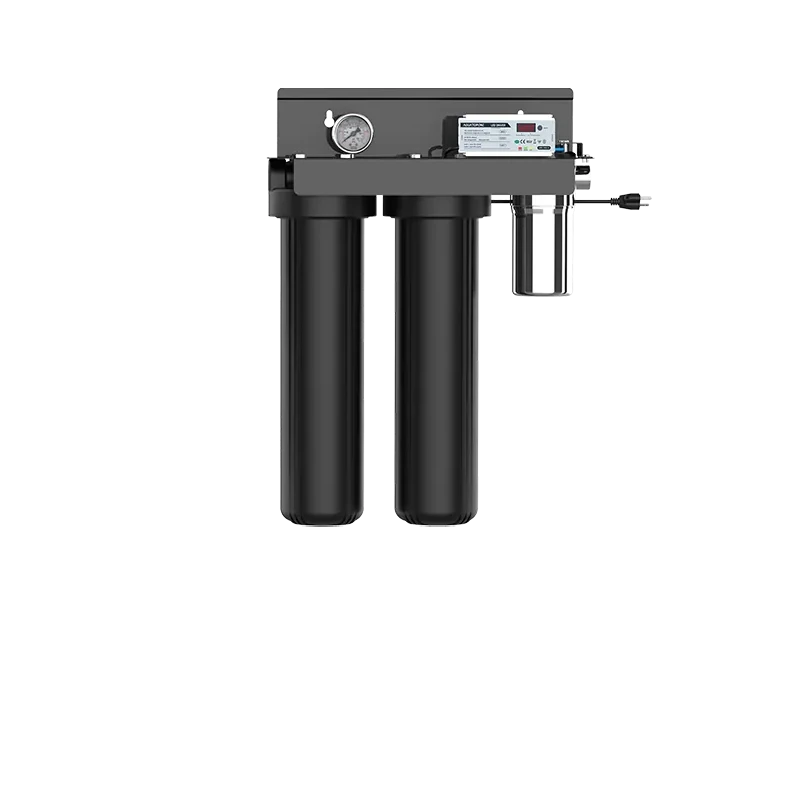

Base model · open-frame 3-stage · 20-inch
Review this VPS configuration VPS-203 / VPS-203C
VPS-203 Open-frame VPS-203C Protective cover
Higher-flow PP sediment + CTO carbon + UVC LED treatment train using 20-inch Big Blue filter housings.
- 30 mJ/cm²
- 45 L/min (12 GPM)
- Filter train
- 20 × 4.5 in · PP + CTO
- Open-frame size
- 540 × 215 × 810 mm
- UVC stage
- AGLED-40012 · 50 W

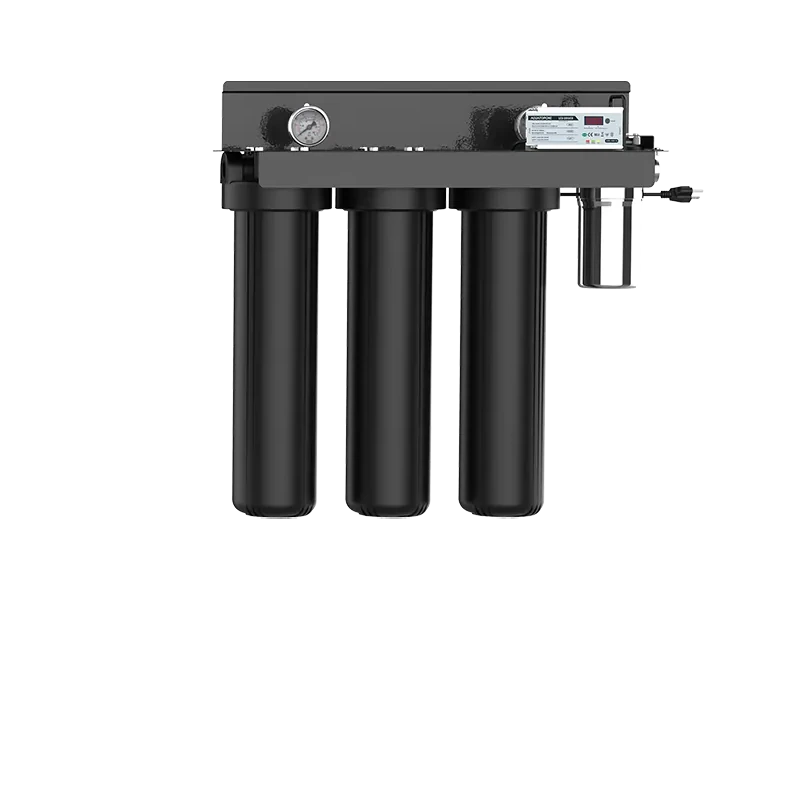

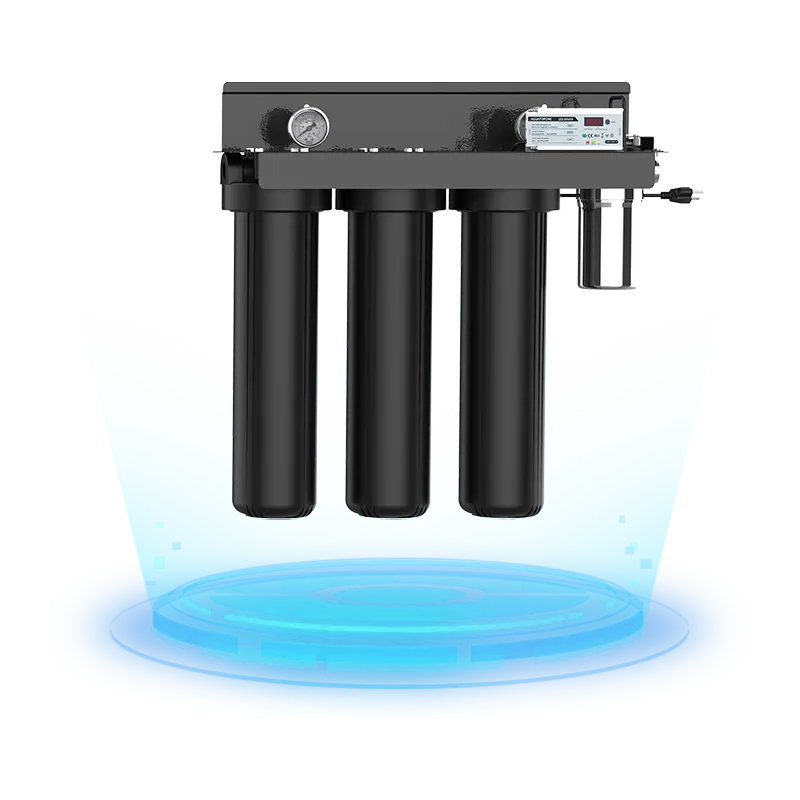

Base model · open-frame 4-stage · 20-inch
Review this VPS configuration VPS-204 / VPS-204C
VPS-204 Open-frame VPS-204C Protective cover
Higher-flow PP sediment + GAC + CTO carbon + UVC LED treatment train with three 20-inch filter housings.
- 30 mJ/cm²
- 45 L/min (12 GPM)
- Filter train
- 20 × 4.5 in · PP + GAC + CTO
- Open-frame size
- 730 × 215 × 810 mm
- UVC stage
- AGLED-40012 · 50 W
ENGINEERING DATA
Flow, dimensions and inlet-water conditions.
Use these values to shortlist a VPS configuration, then match the final selection to your peak flow, required UVC dose, inlet-water quality and available installation space.

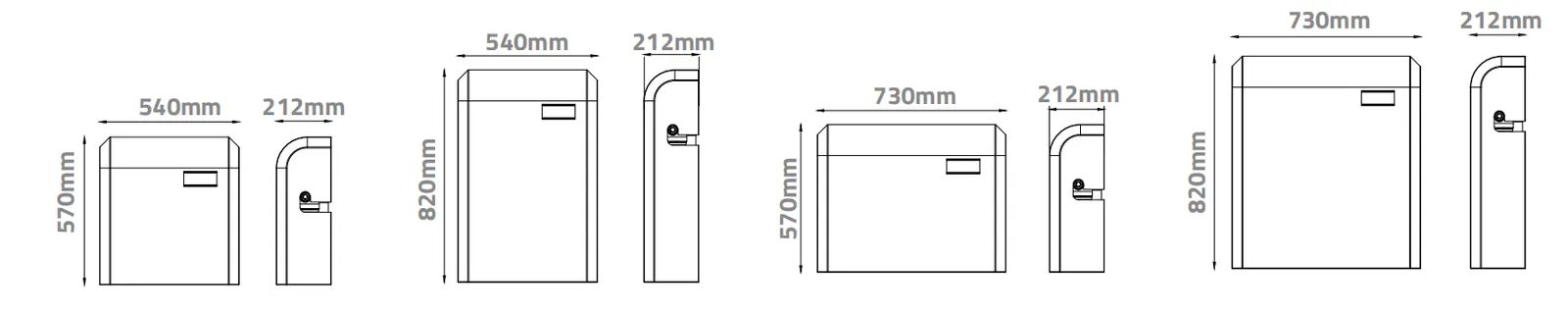

INSTALLATION DIMENSIONS VPS dimensional comparison in millimetres
02
FLOW BY UVC DOSE Dose-specific model selection
| Model pair | 16 mJ/cm² | 30 mJ/cm² | 40 mJ/cm² | Filter configuration | Open-frame size |
|---|---|---|---|---|---|
| VPS-103 / VPS-103C | 57 L/min | 30 L/min (8 GPM) | 23 L/min | 10 × 4.5 in · PP + CTO | 540 × 215 × 570 mm |
| VPS-104 / VPS-104C | 57 L/min | 30 L/min (8 GPM) | 23 L/min | 10 × 4.5 in · PP + GAC + CTO | 730 × 215 × 570 mm |
| VPS-203 / VPS-203C | 85 L/min | 45 L/min (12 GPM) | 34 L/min | 20 × 4.5 in · PP + CTO | 540 × 215 × 810 mm |
| VPS-204 / VPS-204C | 85 L/min | 45 L/min (12 GPM) | 34 L/min | 20 × 4.5 in · PP + GAC + CTO | 730 × 215 × 810 mm |
Flow capacity changes with the required UVC dose. The values above follow the current Owner’s Manual selection table; open-frame dimensions are shown for installation planning. Contact Agua Topone for the latest covered-model drawing and connection options.
COMMON SYSTEM DATA
Hydraulic, electrical and service basis
- Operating pressure
- 10–100 PSI
- Inlet / outlet
- 1 inch
- Input
- 100–240 V AC · 50/60 Hz
- UVC LED power
- 50 W
- UVC chamber
- SUS 304
- Module service interval
- 5,000 operating hours
OWNER’S MANUAL INLET LIMITS
Water quality before UVC treatment
- Turbidity
- < 1 NTU
- Total iron
- < 0.3 ppm
- Hardness
- < 120 ppm / 7 gpg
- UV transmittance
- > 90%
- Water temperature
- 4–37°C
- Colour
- None
Pretreatment and UVC work together as a complete treatment train.
Our application team reviews iron, manganese, hardness, turbidity, UVT and other source-water conditions to match the cartridge train, UVC stage and service plan to the project.
VALIDATION & DOCUMENTS
Review the documents behind VPS selection and performance.
The VPS platform uses AGLED-40012 as its UVC stage. Its SGS report records >99.999% E. coli reduction at 50 L/min under the report’s stated conditions. Our application team aligns water quality, flow and maintenance with the selected VPS configuration.
VPS product and configuration overview
Compare system layouts, filtration stages and enclosure options in one overview.
Open VPS brochureInstallation, operation and maintenance
Covers the eight VPS variants, service space, driver states, module and cartridge replacement.
Open Owner’s ManualAGLED-40012 SGS test report
Review the organism, flow and test conditions recorded for the AGLED-40012 UVC stage.
Open SGS reportHow the four-stage VPS train works
Use the engineering article for process explanation, then return here for commercial model selection.
Read VPS process guideWhat is the difference between a VPS base model and a C-suffix model?
The base VPS-103, VPS-104, VPS-203 and VPS-204 are open-frame systems. VPS-103C, VPS-104C, VPS-203C and VPS-204C are the corresponding models with a protective cover. Covered models need suitable installation and service space.
How do filtration and the UVC LED stage work together?
Sediment and carbon cartridges address particles and selected taste, odour or chlorine concerns, while the UVC LED reactor provides the microbial-disinfection stage. Together they form a compact, serviceable treatment platform.
Can VPS be used for rainwater or well water?
Yes, when the source-water analysis supports a suitable treatment train. The owner’s manual calls for clear inlet water, including turbidity below 1 NTU, iron below 0.3 ppm, hardness below 120 ppm and UVT above 90%; our application team can match pretreatment and the VPS configuration to the project.
Which flow figure should be used for selection?
At 30 mJ/cm², the Owner’s Manual lists 30 L/min for 10-inch models and 45 L/min for 20-inch models. Our application team combines peak flow, UVT, water quality, pressure and the treatment objective to recommend the configuration.
APPLICATION REVIEW
Send the conditions that control VPS selection.
Include peak and continuous flow, source-water analysis, UVT, turbidity, pressure, inlet/outlet standard, available service space, electrical version, target market and required documents.
