PRODUCT SELECTION HUB
Move from application and operating conditions to the right model family.
Compare compact POU modules, whole-house POE reactors, integrated filtration-plus-UVC systems and OEM/ODM routes. Our application team accounts for peak flow, water quality, mechanical fit, electrical integration, service access and product documentation.
FIND THE RIGHT PATH
POU, POE, filtration-plus-disinfection and customized integration have different flow, water-quality, control and documentation requirements.
Use compact EC or AGLED modules near the delivery point inside a controlled host appliance.
Review POU applications → 02 POINT OF ENTRYUse AGLED reactors when the actual peak flow, UVT, pressure and pretreatment fit the model basis.
Review POE applications → 03 FILTER + UVCUse VPS when a real PP/carbon cartridge train and a serviceable UVC LED stage are required together.
Compare VPS systems → 04 OEM / ODMDefine the hydraulic core first, then control connectors, electronics, branding, packaging and documents.
Review ODM support →THREE PRODUCT FAMILIES
Use the family ranges to narrow your options, then review the exact model specifications, drawings, available reports and application conditions.
Compact modules for RO systems, dispensers, drinking terminals, faucets and OEM water appliances.
Stainless-steel modules from higher-output POU duty to whole-house and defined light-commercial POE systems.
Integrated PP and carbon filtration with an AGLED-40012 UVC LED disinfection stage in open-frame or covered variants.
MODEL DIRECTORY
VPS entries are shown in pairs: the C suffix identifies the covered version of the same treatment train. Compare the listed flow, filtration stages and installation format.

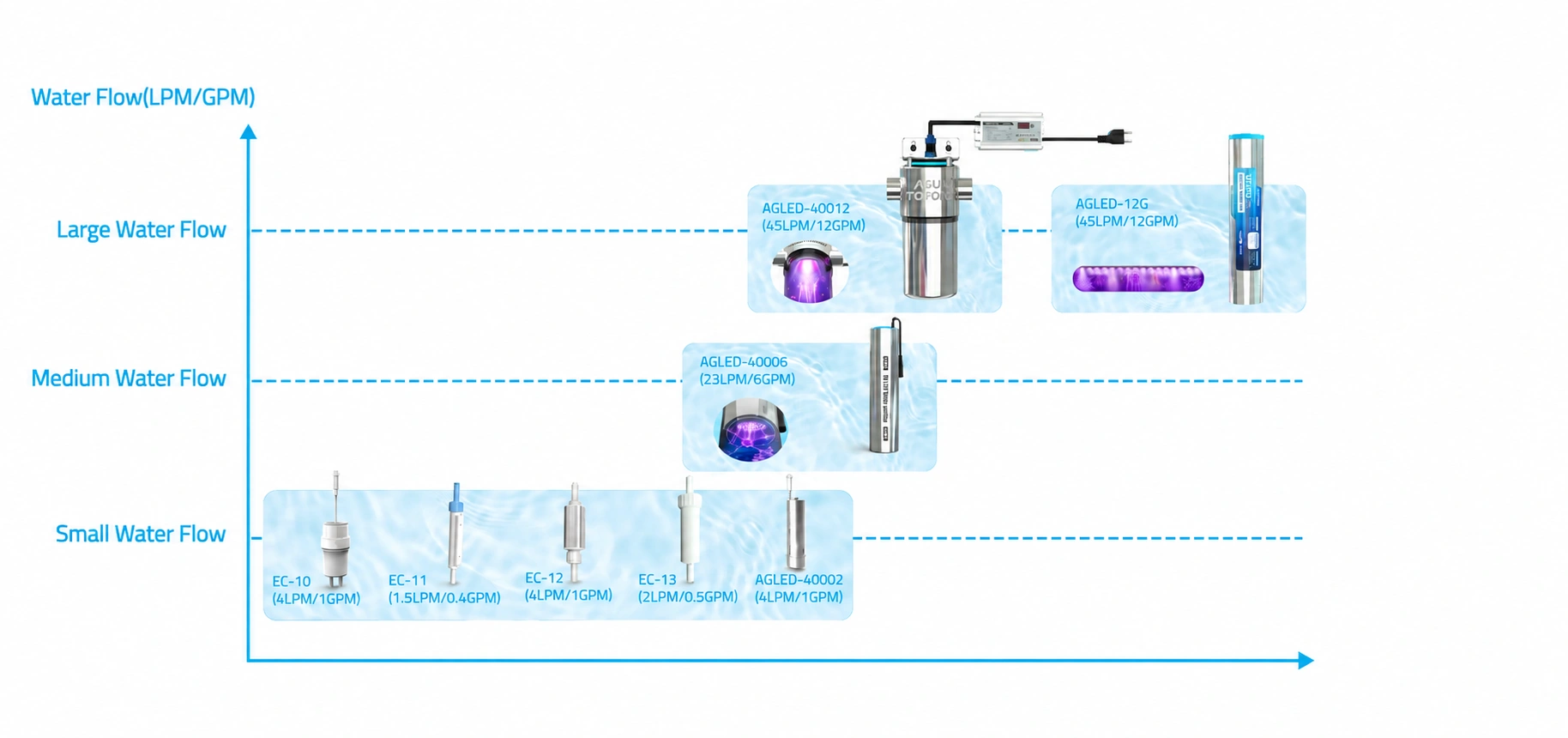

| Model / pair | Role | Published flow basis | Primary fit | Technical page |
|---|---|---|---|---|
| EC-11 | POU | 1.5 L/min · 0.4 GPM | Compact low-flow module | View details → |
| EC-13 | POU | 2 L/min · 0.5 GPM | Dispenser and compact terminal module | View details → |
| EC-10 | POU | 4 L/min · 1 GPM | RO, dispenser and inline OEM module | View details → |

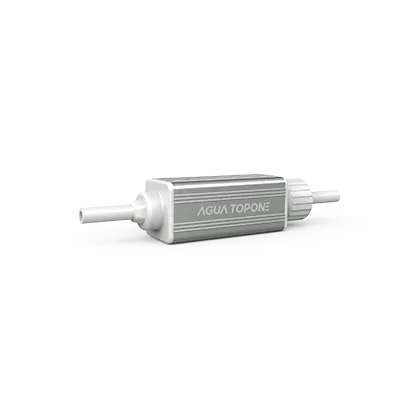

| EC-12 | POU | 4 L/min · 1 GPM | Integrated flow-switch module | View details → |
| AGLED-40002 | POU | 4 L/min · 1 GPM | Higher-output RO and appliance module | View details → |
| AGLED-40006 | POE | 23 L/min · 6 GPM | Compact whole-house and OEM reactor | View details → |

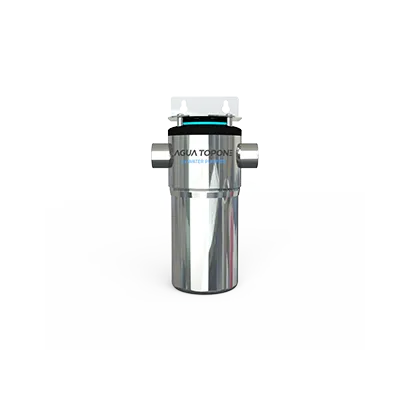

| AGLED-40012 | POE | 45 L/min · 12 GPM | Serviceable high-flow whole-house reactor | View details → |
| AGLED-12G | POE | 45 L/min · 12 GPM | 24 V DC high-flow integration platform | View details → |
| VPS-103 / 103C | VPS | 30 L/min · 8 GPM @ 30 mJ/cm² | 3-stage, 10-inch filtration + UVC | View details → |
| VPS-104 / 104C | VPS | 30 L/min · 8 GPM @ 30 mJ/cm² | 4-stage, 10-inch filtration + UVC | View details → |
| VPS-203 / 203C | VPS | 45 L/min · 12 GPM @ 30 mJ/cm² | 3-stage, 20-inch filtration + UVC | View details → |

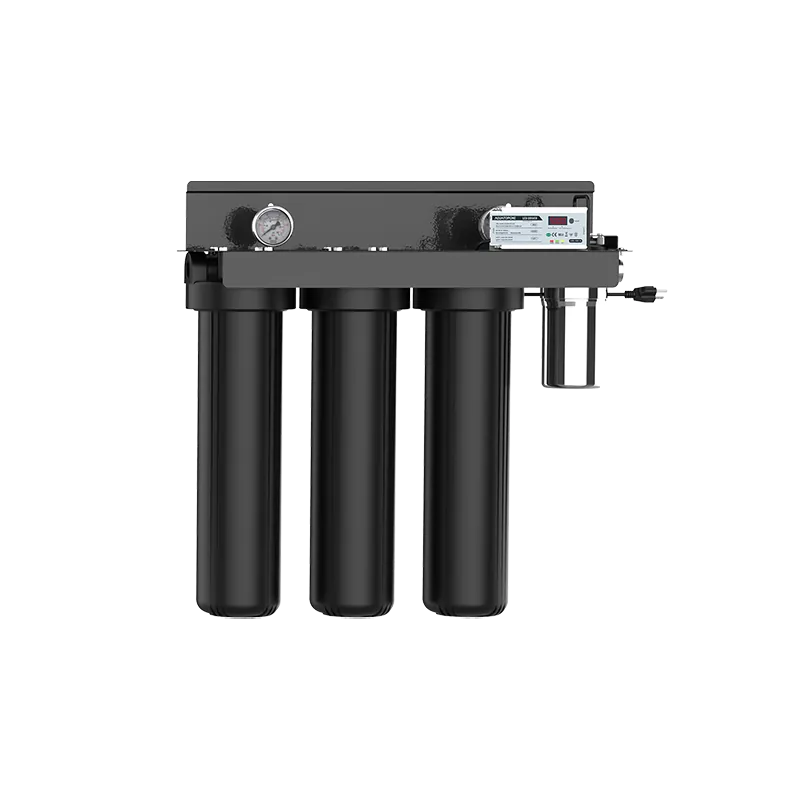

| VPS-204 / 204C | VPS | 45 L/min · 12 GPM @ 30 mJ/cm² | 4-stage, 20-inch filtration + UVC | View details → |
Share peak flow, water quality and integration requirements. Our application team will match the model family, configuration and supporting documents to your project.
ENGINEERING INPUTS
POU, POE, filtration-plus-UVC, replacement module or complete OEM assembly.
Our team matches the model to the highest realistic simultaneous draw.
We review UVT, turbidity, iron, manganese, hardness, temperature and pretreatment needs.
We align pressure, connection standard, flow direction, mounting and maintenance clearance.
We match supply voltage, host logic, flow activation, harness and cable routing.
We prepare the relevant test reports, compliance files and market documents for review.
FILTRATION
Sediment and carbon media can reduce particles and selected taste, odour or chlorine concerns according to the installed cartridge.
UVC DISINFECTION
Select the reactor by project flow, UVT, water quality and operating conditions.
SOURCE-WATER CONDITIONING
Our team can combine UVC with dedicated filtration, softening or other pretreatment where hardness, TDS, iron or sediment require it.
TECHNICAL RESOURCES
Explore technical drawings, specifications, available test reports, certificates, manuals and service information. If you are unsure which documents apply, send us the model and target market for guidance.
Use project flow and water quality to narrow the correct model range.
Open sizing guide →Review available report details, including organism, flow, water quality and test conditions.
View testing information →Check available compliance documents by product model and target market.
View compliance documents →Find manuals, installation guidance, maintenance and troubleshooting routes.
Open Support →PROJECT SHORTLIST
Share the application, peak flow, water analysis and integration requirements. Our team will prepare a practical model shortlist and supporting document package.
