COMPACT POE UVC LED SYSTEM · 6 GPM

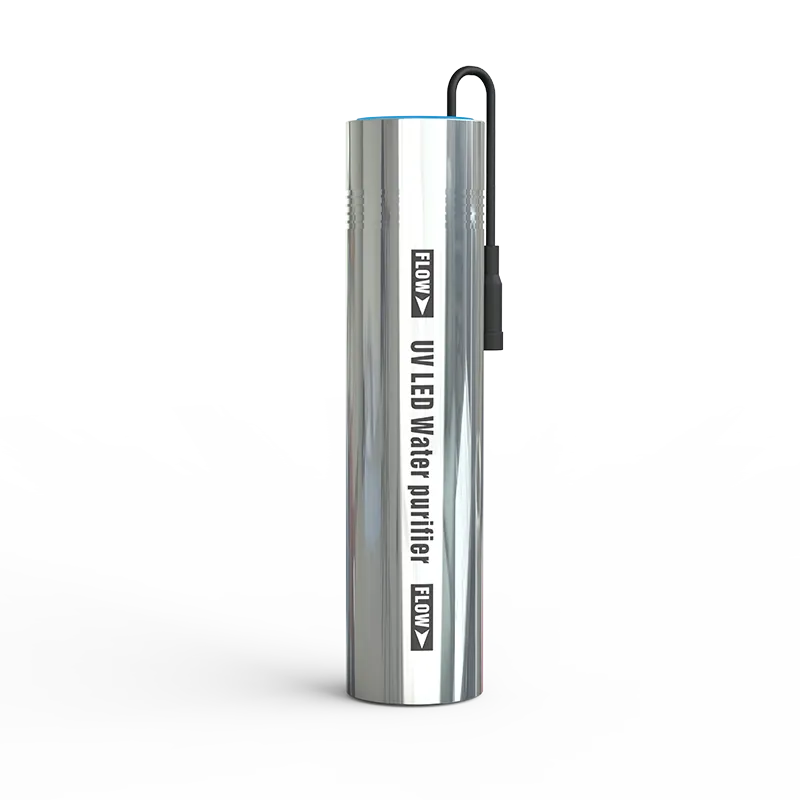

AGLED-40006 6 GPM UVC LED Water Sterilizer
A middle-flow stainless-steel module for compact whole-house and OEM systems.
AGLED-40006 brings a compact 6 GPM stainless-steel platform to residential, mobile, light-commercial and OEM POE systems.
6 GPM Maximum flow · 23 L/min
16 W Rated input power
500 mW UVC optical power
Ø54 × 220 Compact module envelope · mm
PRODUCT ROLE
A compact POE option between POU and 12 GPM systems.
AGLED-40006 supports small whole-house, mobile, light-commercial and OEM applications when the actual peak flow and feed-water conditions fit the model and its report basis.
APPLICATION FIT
A balanced fit for compact 6 GPM POE applications.
- Flow matching: our application team matches the model to the highest realistic draw and target operating condition
- Water review: we review UVT, turbidity, hardness, iron and the appropriate pretreatment
- Mechanical fit: we align pressure, connection, flow direction, mounting and service clearance
- Electrical fit: we select the suitable supply, appliance controls and flow-activation configuration
- Project documents: we prepare the relevant drawing, model report and market documents for review
RV and marine
Space-conscious water systems with confirmed power, flow, mounting and service conditions.
Light commercial
Pretreated drinking-water lines for defined small-commercial peak demand.
OEM equipment
A stainless-steel POE module for equipment builders using G1/2 connections and model-specific evidence.
ENGINEERING DATA
Specifications for model selection.
The current drawing, datasheet and manual are available for project review. Our team will align them with the quoted configuration.
01
DIMENSION DRAWING AGLED-40006 mechanical drawing
Hydraulic & mechanical
Fit the model to the water path.
- Maximum flow rate
- 6 GPM · 23 L/min
- Startup flow
- >1.5 L/min
- Maximum inlet pressure
- 0.8 MPa
- Water temperature
- 1–45°C
- Inlet / outlet
- G1/2-inch female thread; NPT compatible
- Outer dimensions
- Ø54 × 220 mm
- Net / gross weight
- 0.82 kg / 1.05 kg
Electrical & optical
Use the correct powered version.
- Device / adapter input
- 24 V DC / 100–240 V AC
- Input current
- 0.35 A
- Rated power
- 16 W
- UVC optical power
- 500 mW
- UVC wavelength
- 270–280 nm
- L70 service basis
- 5,000 hours
- On / off cycle life
- >100,000 cycles
04
ELECTRICAL & OPTICAL DATA Product parameters
| No. | Parameter | Symbol | Value | Unit |
|---|---|---|---|---|
| 01 | Device input voltage | VIN | 24 | V DC |
| 02 | Input current | IIN | 0.35 | A |
| 03 | Rated power | W | 16 | W |
| 04 | UVC optical power | Φe | 500 | mW |
| 05 | UVC wavelength | WLP | 270–280 | nm |
| 06 | Lifetime test | L70 | 5,000 | h |
Power-supply options
The module operates at 24 V DC and is available with a 100–240 V AC adapter for project-specific power integration.
OEM INTEGRATION REVIEW
Match the 6 GPM platform to realistic simultaneous demand.
Our application team reviews turbidity, iron, manganese, UVT and simultaneous demand, then matches AGLED-40006 or a 12 GPM option to the project.
- 01 Define water conditions
Peak flow, UVT, turbidity, temperature and upstream treatment.
- 02 Match mechanical fit
Pressure, connection size, flow direction, mounting and service clearance.
- 03 Select electrical version
Supply voltage, host-appliance logic, flow activation and safe cable routing.
- 04 Assemble project documents
Match the exact model report and compliance documents to the target project.
05
MODEL SELECTION Where AGLED-40006 sits in the model range
| Model route | Best fit | Flow basis | Positioning |
|---|---|---|---|
| EC-10 / EC-12 | Faucet, dispenser, coffee machine or compact purifier | 1 GPM / 4 LPM | POU UVC LED module |
| AGLED-40006 | Small POE, RV, apartment, light commercial and OEM systems | 6 GPM / 23 LPM | Compact POE module |
| AGLED-40012 | Larger whole-house and high-flow POE systems | 12 GPM / 45 LPM | Serviceable high-flow POE module |
MODEL-SPECIFIC EVIDENCE
99.999% E. coli inactivation recorded in the available SGS report at 23 L/min under the stated report conditions.
The linked SGS report records the result for AGLED-40006 at its stated organism, flow and water conditions. Our team uses those conditions during project selection.
Open model test reportModel-specific results with clear test conditions.
The report identifies the model, organism, flow and water conditions behind the performance result.
Documents organized by project purpose.
Performance reports and compliance documents are listed independently for straightforward review.
A complete document set for project review.
The SGS report, series CE document, owner’s manual and application support are listed below.
DOCUMENT CENTER
Review the technical package for your project.
Drawings, performance reports, installation documents and market files are organized by purpose for easier project review.
MANUAL AGLED-40006 Owner's Manual Operation, safety and service information. SGS AGLED-40006 SGS Test Report Model performance under the report conditions. CE UVC LED Series CE Compliance Certificate Series-level CE compliance document. CATALOG UVC LED Product Catalog 2026 Series comparison and product context.
BUYER FAQ
AGLED-40006 project questions.
Is 6 GPM enough for whole-house water disinfection?
AGLED-40006 fits compact POE systems where realistic peak demand remains within 6 GPM. Larger homes or multiple simultaneous outlets should be reviewed against a 12 GPM model.
Does the module need to stay on all day?
Flow-sensing operation allows the host system to activate the UVC LEDs when water flows. Confirm the final control logic in the applicable manual.
What model evidence is available?
The document center lists the model SGS performance report, the series CE document and the AGLED-40006 owner’s manual.
Can Agua Topone support OEM integration?
Project review can cover model selection, technical documents, branding, labeling and integration inputs after the application conditions are defined.
